4 tons tire &conveyor belt Pyrolysis Plant
KJ-PU4tons
Main Parts Of Pyrolysis Plant

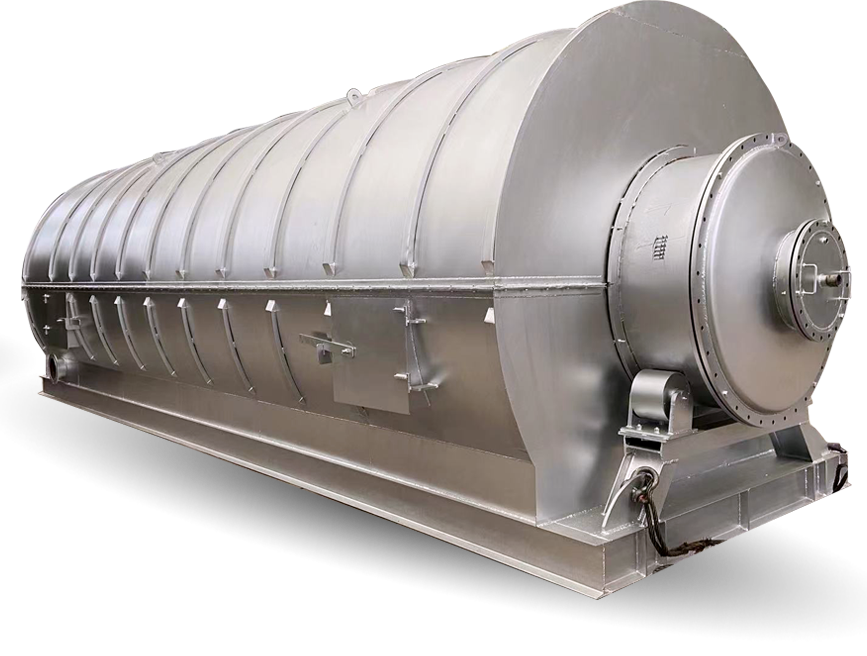

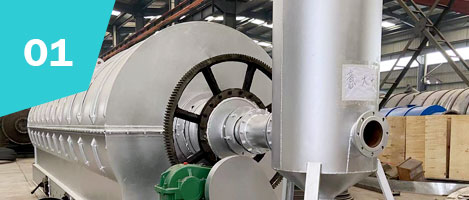

Reactor Part (including the reactorvessel , insulation, motors, reducer, chimney, furnace,etc).Same as showing in the photo .
Cooling system(including the catalyst chamber,top cooling pipes,oil-water separator,condensers,oil tanks,anti-back fire devices,connection pipes and joints,etc.)Same as showing in the photo.

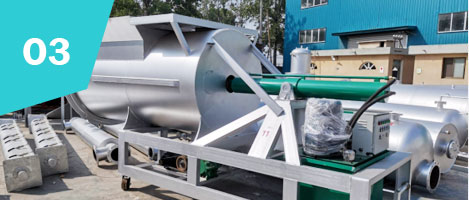

Feeding system(including Automatic feeder) .Same as showing in the photo.
| Supply Scope | |||
| Main System | Description | Main Parts | Quantity |
| Pyrolysis reactor | External size: length 10300mm, width 2140mm, height 2200mm Main material: Q245R boiler plate, 16mm thickness Size of feeding port: diameter 1400mm | Internal pyrolysis chamber Insulation cover Feeding port Discharging port Gear Reducer Motor Oil gas outlet Rollers |
1 |
| Condensing system | Integrated square box condenser | Square box condenser Horizontal condenser Oil gas purification chamber Oil-water separator Oil tank Syngas collector |
1 |
| Emission control system | Stainless steel deduster with internal ceramic filters | Stainless steel de-duster Flue pipe Draught fan Chimney |
1 |
| Heating system | Heavy oil burners and combustible gas burners | Oil burners Gas burners Blowers Furnace base Pipelines |
1 |
| Approx. Oil Yield of Different Raw Materials | |
| PP(microwave oven food box/yogurt bottles,etc.) | 50%~75% |
| PE (Plastic film / plastic wrap) | 50%~75% |
| PS (fast food boxes / instant noodle boxes) | 50%~75% |
| ABS (Engineering plastics) | 40% |
| Leftovers of paper | Wet 15~20% , Dry 60% |
| House garbage | 35-50% |
| Plastic cable | 80% |
| Plastic bags | 50% |
| Submarine cable | 75% |
| Rubber cable | 35% |
| Soles | 30% |
| Big tires | 45%~50% |
| Small tires | 35%~40% |
| PVC (raincoat/building materials.etc.) | Not applicable |
| PET (mineral water bottles/sodas beverage bottles) | Not applicable |
Final Products Final Products and Application and Application
| Products | Application |
| 45%~50% Pyrolysis oil (Tire oil/Plastic oil) | 1.Add it into heavy oil generators to produce electricity. 2.Be used as heating material in ceramic factory, glass factory, power plants, steel making factory, boiler factory,etc. Sell it into oil refining factory for further processing. |
| 25%~30% Carbon black | 1.Sell it into coal briquette factory directly, but with cheap price. 2.Make it into carbon black pellets or briquettes as fuel for burning. Further processing it into color master batch, and then sell it into plastic factory as basic material to make pipes, cable jacket,etc. |
| 15%~20% Steel wire | Sell it into iron and steel factory directly |
| 5%~10% Waste gas | Recycle it into furnace as fuel for heating the reactor |
Waste to wealth, green and environmental.We are on the way!
